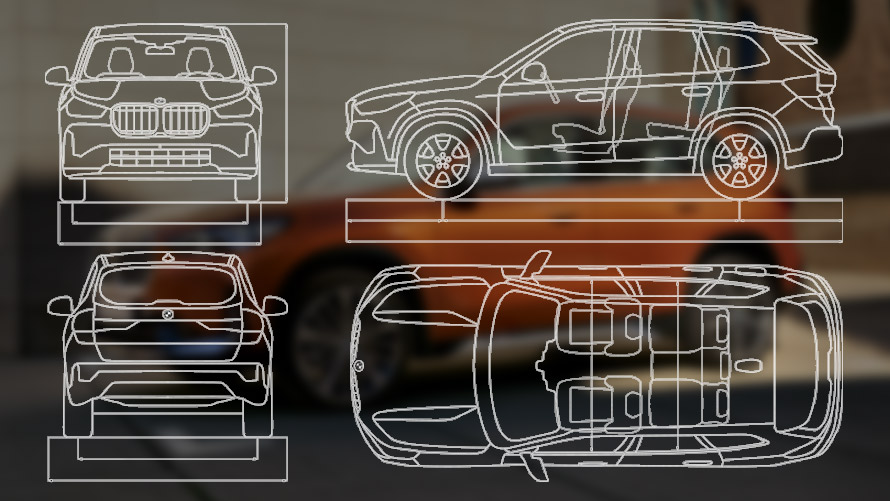

BMW X1: ENGINES & TECHNICAL DATA

Discover the powerful petrol engine as well as the dimensions and other technical data of the BMW X1.

Read more
THE X1BMW X1: ENGINES & TECHNICAL DATA

BMW X1: TECHNICAL DATA.

Select model

Weight

Unladen weight EU in kg 1,480 [1,510]
Max. permissible weight in kg 2,000 [2,025]
Permitted load in kg 595 [590]
Permitted axle load front/rear in kg 995/1,035 [1,020/1,035]
Luggage capacity min. (seats up or roof down) in l 505 [505]
Luggage capacity max. (seats down or roof up) in l 1,550 [1,550]
Trailer load (unbraked) in kg 740 [750]
Trailer load 8% (braked) in kg 1,700 [1,700]
Trailer load 12% (braked) in kg 1,700 [1,700]

Engine

Cylinders/valves 3/4
Capacity in ccm 1,499
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 100 (136)/4,500-6,500
Engine torque (Nm) at 1/min 220/1,500-4,100
Compression ratio : 1 11.0

Performance

Top speed in km/h 205 [203]
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 9.7 [9.7]

Fuel consumption

Combined in l/100 km 7.2-6.1
CO2 combined emissions in g/km 163-139
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,655
Max. permissible weight in kg 2.155
Permitted load in kg 575
Permitted axle load front/rear in kg 1,090/1,100
Luggage capacity min. (seats up or roof down) in l 505
Luggage capacity max. (seats down or roof up) in l 1,550
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 131 (178)/5,000-5,500
Engine torque (Nm) at 1/min 280/1,350-4,200
Compression ratio : 1 11.0

Performance

Top speed in km/h 223
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 7.3

Fuel consumption

Combined in l/100 km 7.7-6.9
CO2 combined emissions in g/km 175-158
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 61

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,570
Max. permissible weight in kg 2.065
Permitted load in kg 570
Permitted axle load front/rear in kg 1,050/1,050
Luggage capacity min. (seats up or roof down) in l 505
Luggage capacity max. (seats down or roof up) in l 1,550
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 131 (178)/5,000-5,500
Engine torque (Nm) at 1/min 280/1,350-4,200
Compression ratio : 1 11.0

Performance

Top speed in km/h 226
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 7.6

Fuel consumption

Combined in l/100 km 7.3-6.5
CO2 combined emissions in g/km 165-147
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW X1 xDRIVE20i:
Fuel consumption in l/100 km (combined): 7.7–6.9
CO2 emissions in g/km (combined): 175–158

BMW X1 xDrive25e**:
Fuel consumption in l/100 km (combined): 1.9–1.7
CO2 emissions in g/km (combined): 44–39
Energy consumption in kWh/100 km (combined): 19.6–19.2


Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp


** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.
